Tongue & Groove 5-1/8" - 3 (WP-103)
Tongue & Groove 5-1/8" - 3 (WP-103)

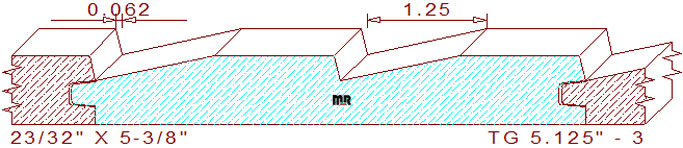

This 5-1/8" - 3 (WP-103) tongue & groove siding measures 5.375" overall width and a thickness of .718", requiring a 5-5/8" wide blank of four-quarter lumber for milling on an industrial moulder. The decorative profile contains two 1-1/4" wide horizontal fillets attached to a 1-1/4" wide twelve-degree bevel with a transitional 1/16" wide by 17/64" deep vertical upsloping line. This helps displace moisture away from the pattern's face when installed. When two pieces join, they create a face coverage dimension of 5-1/8" wide, with a .020" void in the tongue-and-groove joint area for expansion and contraction during seasonal changes in relative humidity.
This template-ready CAD-generated dxf file (purchase in the link below) contains three skillfully drafted template designs for producing profile cutters for this WP-103 tongue and groove pattern. All our innovative profiles have a proven unbroken computer numerical control (CNC) tool path, making your job much easier in production.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.718
Depth of Cut: 0.281
Left Cutter Head
Thickness: 0.718
Depth of Cut: 0.250
Top Cutter Head
Width: 5.375
Depth of Cut: 0.265
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$135.00
$135.00
$362.50
Not Needed
Total:
$632.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$142.00
$142.00
$387.00
Not Needed
Total:
$671.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$152.50
$152.50
$423.75
Not Needed
Total:
$728.75
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
