Tongue & Groove 5-3/16" - 2
Tongue & Groove 5-3/16" - 2

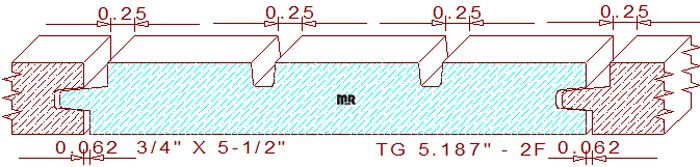

This 5-3/16" - 2 tongue & groove siding measures overall 5.500" wide with a 5.187" face dimension, the thickness equals .750", the profile is comprised of a 1/4" wide by 5/16" deep tongue and groove with three 1/4" wide by 1/4" deep grooves or quirks that are divided by 1-1/2" fillets on the face side and a 1/16" gap on the back side when assembled. A 1/4" spacer will need to be inserted in the joint area at the time of assembly to keep the 1/4" gap and 1/16" groove consistent because the tongue does not bottom out in the design; this is left for expansion and contraction of the wood when installed.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.313
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.500
Top Cutter Head
Width: 5.187
Depth of Cut: 0.250
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
$351.72
Not Needed
Total:
$619.72
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
$375.47
Not Needed
Total:
$657.47
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
$411.09
Not Needed
Total:
$714.09
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
