Search Our Moulding Knives Catalog by Category and Size

*Enter desired search sizes - use whole numbers & decimals

Tongue & Groove 5-1/4" - 2

Tongue & Groove 5-1/4" - 2

Tongue & Groove 5-1/4" - 2

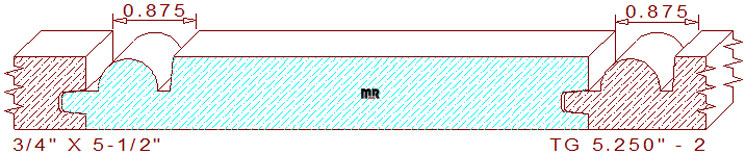

This beaded 5-1/4" - 2 tongue & groove paneling measures 5.500" wide by .750" thickness, permitting the pattern to be milled from four-quarter lumber. The beautifully decorative profile is composed of a 1/4" wide by 9/32" deep tongue and groove on the side edges with a .010" void in the joint area for seasonal changes in relative humidity. The top of the design is comprised of a 4-3/8" broad flat line, joined to a 1/8" wide by 11/32" deep sunk fillet, connected to a recessed (.020") 5/8" wide half-round circle with a 1/8" broad line segment above the tongue. When two pieces of milled lumber are joined together, they create an attractive 7/8" wide beaded channel with a face coverage dimension of 5-1/4" wide. We offer a couple of other alternative profiles with different inner dimensions for your review and consideration, tongue & groove 3.250" - 11 and tongue & groove 3.250" - 12.

Be sure to check out a few other profile designs for different rooms in your beautiful home or office, our moulding catalog has over a 15,500 profiles to select from. Our eminence derives from over thirty-five years of experience and the superior functionality of all our custom knife profiles.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.281
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.250
Top Cutter Head
Width: 5.250
Depth of Cut: 0.349
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$130.50
$130.50
$343.00
Not Needed
Total:
$604.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
$137.50
$367.00
Not Needed
Total:
$642.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
$144.50
$391.00
Not Needed
Total:
$680.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
