Tongue & Groove 5-1/4" - 3
Tongue & Groove 5-1/4" - 3

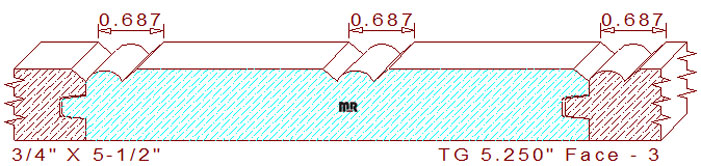

This 5-1/4" - 3 tongue & groove beadboard measures 5.500" wide by .750" thickness. The stylish profile is comprised of two 11/16" wide vee grooves with a half-circle in the center, divided by two 1-15/16" broad straight horizontal lines. The side portions of the detail consist of a 1/4" wide by 1/4" tall tongue and groove, with .010" void area in the joint area for expansion and contraction during seasonal changes in relative humidity.
This Cad generated dxf file contains three skillfully drafted moulding template designs for creating custom knives for this creative beadboard pattern. Thanks for allowing us to help enhance your home's marvelous architectural details, one astonishingly gorgeous molding profile at a time.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.281
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.250
Top Cutter Head
Width: 5.250
Depth of Cut: 0.204
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
$355.00
Not Needed
Total:
$623.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
$379.00
Not Needed
Total:
$661.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
$415.00
Not Needed
Total:
$718.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
