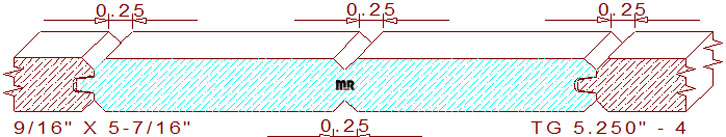

Tongue & Groove 5-1/4" - 4

Tongue & Groove 5-1/4" - 4

Tongue & Groove 5-1/4" - 4

This duel faces 5-1/4" - 4 v-groove paneling measures 5.437" wide by .563" thickness overall, enabling the use of four-quarter lumber for milling on a commercial moulder. For installation planning purposes, the face coverage dimension is 5-1/4" full when assembled. The lovely profile is composed of a 3/16" wide by 5/32" tall tongue & groove joint with a .016" void in the joint area for expansion and contraction of the wood during seasonal changes in relative humidity. The top and bottom contain two 2-3/8" flat sections separated by a 1/4" wide by 1/8" deep v-shaped channel in the center, each side edge on the top & bottom retains a 1/8" by 1/8" bevel.

Are you a molding manufacturer? Please add your company information to our millwork suppliers map; this valuable resource will help potential customers in your area experience the creative craftsmanship of your woodworking shop. Did you know you can connect our substantially sized moulding profile catalog to your website? It is free, so why not offer your clients beautiful wood pattern designs to enhance their elegant homes' grace and opulence?

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.563
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.563
Depth of Cut: 0.171
Top Cutter Head
Width: 5.250
Depth of Cut: 0.171
Bottom Cutter Head
Width: 5.250
Depth of Cut: 0.171

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$130.50
$343.00
$300.00
(Template not needed)
Total:
$773.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$137.50
$367.00
$324.00
(Template not needed)
Total:
$828.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$144.50
$391.00
$348.00
(Template not needed)
Total:
$883.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
