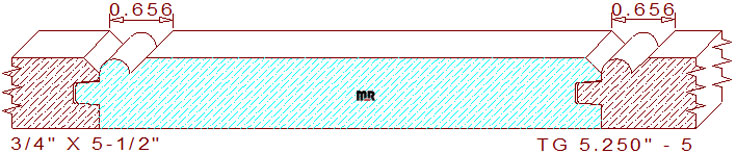

This decorative 5-1/4" - 5 beadboard paneling measures 5.500" wide by .750" thickness overall, enabling the use of four-quarter lumber for milling on an industrial molder. For installation planning purposes, the face coverage dimension is 5-1/4" full when assembled. The famous profile is composed of a 1/4" wide by 1/4" tall tongue & groove joint with a .008" void in the joint area for expansion and contraction during seasonal changes in relative humidity. The top consists of a 4-19/32" flat section in the center, joined to a half bead, and a small angled line on the left, the right side retains an 11/64" beveled edge. When two pieces of milled lumber get joined together, they create a 21/32" wide vee joint with a recessed 5/16" half bead in the center.
This template ready cad generated dxf file (purchase in the link below) contains three skillfully drafted template designs for producing profile cutters for this creative beadboard pattern. All our innovative profiles have a proven unbroken computer numerical control (CNC) tool path, making your job much easier in production.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.281
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.250
Top Cutter Head
Width: 5.250
Depth of Cut: 0.238
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
$355.00
Not Needed
Total:
$623.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
$379.00
Not Needed
Total:
$661.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
$415.00
Not Needed
Total:
$718.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
