Tongue & Groove 5-1/2" - 3

Tongue & Groove 5-1/2" - 3

Tongue & Groove 5-1/2" - 3

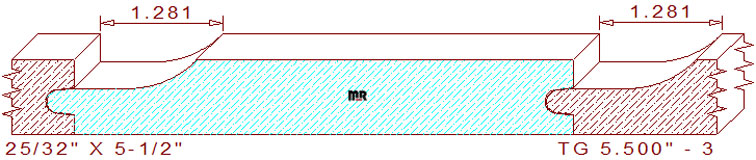

This concave 5-1/2" - 3 tongue & groove siding measures 5.500" wide by .781" thickness, allowing the detail to be machined out of four-quarter lumber. The scooped-out profile is comprised of a 9/32" tall & wide tongue and groove with a .012" void in the joint for expansion and contraction of the wood during seasonal changes in relative humidity. The face of the design consists of a 3-15/16" broad flat line in the center, connected to a one-inch radius cove tangent off of a 27/32" broad flat line. When two pieces of milled lumber are joined together they create a 5-7/32" face coverage dimension with a 1-9/32" semicircular cove between the joined boards.

This cad generated dxf file (available for purchase in the link below) contains three skillfully drafted template designs for producing knives for this creative siding pattern. All our innovative profiles have a proven unbroken computer numerical control (CNC) tool path, expediting the production process.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.781
Depth of Cut: 0.295
Left Cutter Head
Thickness: 0.781
Depth of Cut: 0.281
Top Cutter Head
Width: 5.500
Depth of Cut: 0.298
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$130.50
$130.50
$355.50
Not Needed
Total:
$616.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
$137.50
$380.50
Not Needed
Total:
$655.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
$144.50
$405.50
Not Needed
Total:
$694.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
