Tongue & Groove 5-3/4"

Tongue & Groove 5-3/4"

Tongue & Groove 5-3/4"

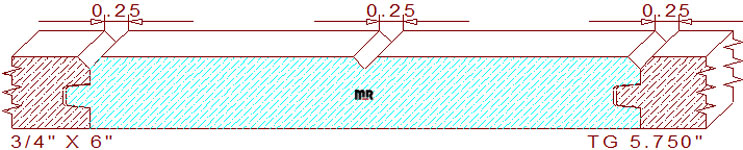

This 5-3/4" tongue & groove siding measures 6.000" overall width and a thickness of .750", requiring a 6-3/4" wide blank of four-quarter lumber for milling on an industrial moulder. The simplistic but decorative profile contains two 2-5/8" flat line segments divided by a 1/4" wide by 1/8" deep v-groove in the center with a 1/8" forty-five-degree chamfer on both side edges. The tongue and groove dimensions are 1/4" wide by 1/4" deep with a .008" void in the joint area for expansion and contraction of the material during seasonal changes in relative humidity. When two pieces of milled lumber are joined together, they create a 1/4" v-groove between the merged boards.

This template ready cad generated dxf file (purchase in the link below) contains three skillfully drafted template designs for producing profile cutters for this siding pattern. All our innovative profiles have a proven unbroken computer numerical control (CNC) tool path, making your job much easier in production.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.281
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.250
Top Cutter Head
Width: 5.750
Depth of Cut: 0.216
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$130.50
$130.50
$368.00
Not Needed
Total:
$629.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
$137.50
$394.00
Not Needed
Total:
$669.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
$144.50
$420.00
Not Needed
Total:
$709.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
