Tongue & Groove 6-1/2" - 1
Tongue & Groove 6-1/2" - 1

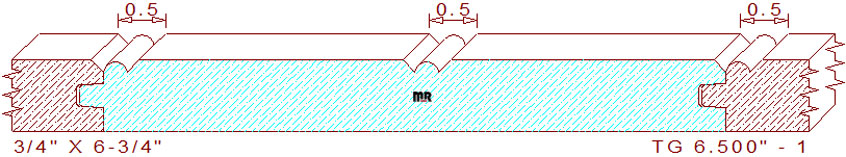

This beadboard tongue and groove molding measures 6-3/4" overall with a 6-1/2" face dimension, the thickness measures 3/4", the profile is composed of two recessed (by .020") 1/8" radius half round beads flanked with a chamfer on each side, together they create a 1/2" V groove with a bead in the center which is separated by a 2-3/4" wide fillet with a chamfer in one side of the design. This pattern contains three-knife template designs in the downloadable file, they are right, left, and top profiles.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.281
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.250
Top Cutter Head
Width: 6.500
Depth of Cut: 0.228
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
$420.00
Not Needed
Total:
$688.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
$449.00
Not Needed
Total:
$731.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
$492.50
Not Needed
Total:
$795.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
