Tongue & Groove 6-23/32"
Tongue & Groove 6-23/32"

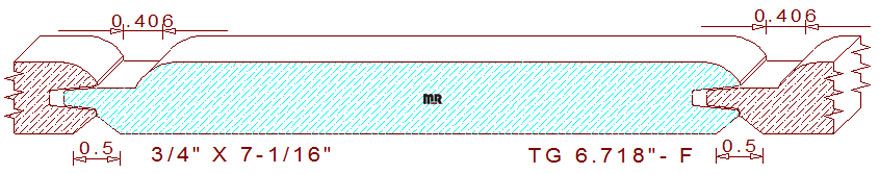

This tongue and groove molding measure 7-1/8" with a face dimension of 6-23/32", the profile has two design options for siding applications, one face creates a 1/2" V groove when two pieces are joined together while the other side has 13/32" wide radius edge channel or gap.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
