Tongue & Groove 7" - 1
Tongue & Groove 7" - 1

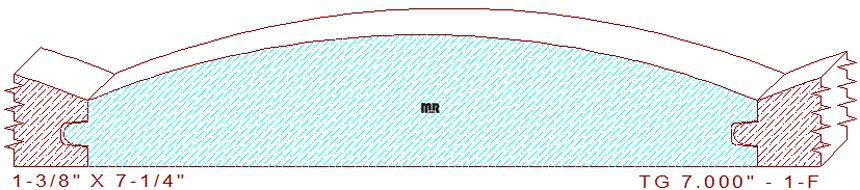

This 7" - 1 tongue & groove log siding measures 7.250" overall with a 7.000" face. The design comprises a 9-1/4" radius arc with a 1/4" tongue and groove. The Dxf file contains three template designs: right, left, and top.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.375
Depth of Cut: 0.281
Left Cutter Head
Thickness: 1.375
Depth of Cut: 0.250
Top Cutter Head
Width: 7.000
Depth of Cut: 0.750
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$153.50
$153.50
$477.00
Not Needed
Total:
$784.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$162.00
$162.00
$508.00
Not Needed
Total:
$832.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$174.75
$174.75
$554.50
Not Needed
Total:
$904.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
