Tongue & Groove 7" - 2
Tongue & Groove 7" - 2

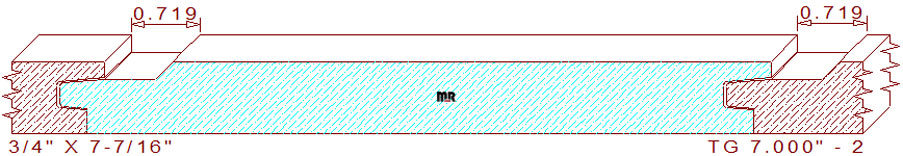

This decorative 7" - 2 tongue & groove siding measures 7.437" wide by .750" thickness, permitting the detail to be machined out of four-quarter lumber. The well-designed functional profile is composed of a 6-1/4" broad straight flat line in the center, attached to a 3/16" wide by 3/16" deep forty-five-degree bevel that joins to a one-inch broad line segment with a 3/64" eased edge on the left side. The joint portion of the design consists of an 11/32" tall offset groove, the tongue dimension is 5/16" wide by 9/32" tall, there is a .031" void built into the knife design for expansion and contraction of the lumber during seasonal changes in relative humidity. When two pieces of milled lumber are joined, they create a face coverage dimension of 6-31/32" wide with a 23/32" wide by 3/16" deep tapered channel between the joined boards.
Custom-made elegance is a phrase used to define the beauty, style, and artisanship of thousands of our moulding designs. Whether you own a recently built house or an older-style residence, we have the ability, knowledge, and experience to create profiles that will complement the architectural decor of your elegant home or office.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.281
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.500
Top Cutter Head
Width: 7.437
Depth of Cut: 0.421
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
$468.72
Not Needed
Total:
$736.72
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
$501.47
Not Needed
Total:
$783.47
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
$550.59
Not Needed
Total:
$853.59
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
