Tongue & Groove 8-1/2" - 1

Tongue & Groove 8-1/2" - 1

Tongue & Groove 8-1/2" - 1

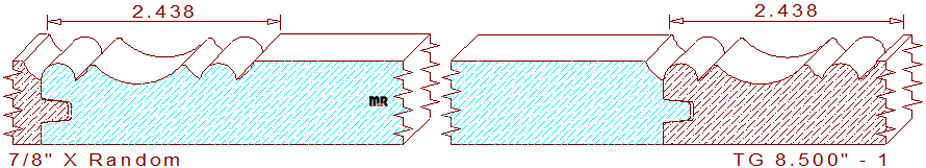

This 8-1/2" - 1 Pickwick tongue & groove siding measures 8.500" wide by .875" thickness, allowing the detail to be machined out of four, or five-quarter lumber. The highly decorative profile originated in the 1930's error, but it is still in high demand today. The embellished detail area comprises a 5/8" radius scotia flanked by two 5/16" coves that connect to a 3/8" wide half-round bead, attached to another 5/16" cavetto before starting the flat section in the center. When two pieces of milled lumber are joined, they create an attractive pattern dimension of 2-7/16" wide. The design is laid out so that the tongue and 5/16" cove, in a brown section on the left side, is machined by the left cutter head on the machine, this design allows the width to be milled to any desired size.

Are you a moulding manufacturer? If so, please add your company information to our millwork suppliers map. This valuable resource will help potential customers in your area experience the creative craftsmanship of your woodworking shop. Did you know you can connect our substantially sized moulding profile catalog to your website? It's free, so why not offer your clients beautiful wood pattern designs that will enhance the grace and opulence of their elegant homes?

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.875
Depth of Cut: 0.312
Left Cutter Head
Thickness: 0.875
Depth of Cut: 0.478
Top Cutter Head
Width: 8.500
Depth of Cut: 0.361
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$130.50
$130.50
$505.50
Not Needed
Total:
$766.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
$137.50
$542.50
Not Needed
Total:
$817.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
$144.50
$579.50
Not Needed
Total:
$868.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
