Tongue & Groove 8-7/8"

Tongue & Groove 8-7/8"

Tongue & Groove 8-7/8"

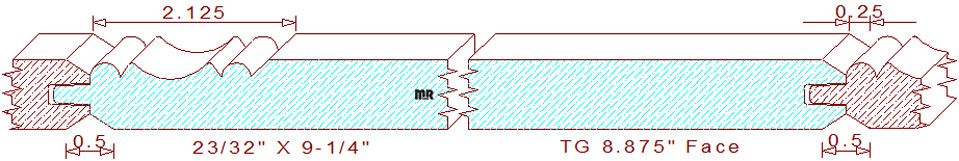

This 8-7/8" Pickwick paneling measures 9.250" wide with a face dimension of 8.875" wide and a thickness of .718". The nickname Pickwick gets its identity from Charles Dickens's first novel, "The Pickwick Papers." this wood paneling style remains very popular in home architecture. The profile is composed of a 1.875" detail on one side that consists of three chamfers and two half-round beads with a cavetto/cove positioned in the center; the other side of the design has a 1/4" chamfer on the edge of one side and both sides of the bottom. When two finished milled pieces of lumber are joined together, they create a 2-1/8" profile with 6-3/4" of flat between the profile portions and a 1/2" wide V groove on the opposite face for an alternative pattern installation. This pattern will require a 12" wide capable molder and grinder to grind the knives to mill this particular pattern. Typically, when machining tongue and groove profiles on an industrial moulder, the tongue portion is milled on the left vertical cutter head, and the groove is milled on the right cutter head to help straighten the lumber while increasing yield utilizing the adjustable infeed fence on the machine. The template design is just the opposite, so you can change the widths to any size you desire at the time of milling simply by adjusting the left vertical spindle, which is milling the two chamfers and the groove simultaneously.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.718
Depth of Cut: 0.281
Left Cutter Head
Thickness: 0.718
Depth of Cut: 0.250
Top Cutter Head
Width: 8.875
Depth of Cut: 0.217
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$130.50
$130.50
$524.25
Not Needed
Total:
$785.25
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
$137.50
$562.75
Not Needed
Total:
$837.75
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
$144.50
$601.25
Not Needed
Total:
$890.25
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
