Tongue & Groove 3/8" - 2

Tongue & Groove 3/8" - 2

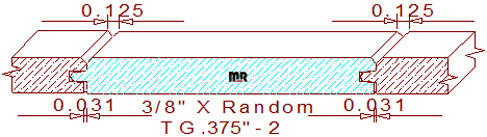

This tongue & groove moulding 3/8" - 2 measures .375" thickness, enabling the profile to be machined out of resawn five, or solid four quarter lumber. The width can be milled to any desired size within the parameters of the moulder or shaper used to cut the pattern. The beautiful profile is comprised of a 1/8" tall by 3/16" wide tongue & groove with an attached 1/16" wide by 1/16" deep chamfer on one side edge, there is a built in .006" void inside the joint area for seasonal changes in relative humidity. When two pieces of milled lumber are joined together they create a 1/8" wide by 1/16" deep v-groove on the face side with a 1/32" gap on the bottom side of the merged boards.

Whether you have a Weinig R960 profile grinder, or a CNC Technology template making machine, our innovative molding profiles are intended to save valuable time and money in your demanding production schedule. From just an idea in one's mind, to reality in your client's beautiful home, our patterns reflect the attractive elegance and architectural style of their imagination, be creative by mixing and matching a few of our beautiful designs.

For moulding knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Thickness = .375" / Depth of Cut = .181" (right blades) & .297" (left cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $10.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
