Tongue & Groove 7/16"

Tongue & Groove 7/16"

Tongue & Groove 7/16"

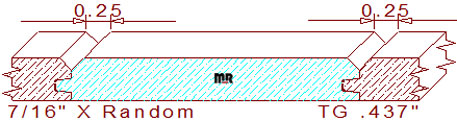

This 7/16" tongue & groove v-joint measures .437" thickness, authorizing machining out of resawn six or solid four-quarter lumber. The width gets milled to any desired size within the parameters of the moulder or shaper used to cut the pattern. The attractive profile comprises a 3/16" wide by 9/64" tall tongue & groove with a 1/8" by 1/8" forty-five degree chamfer on the side edges. There is a .006" void in the joint area for expansion and contraction of the wood during seasonal changes of relative humidity. When two pieces of milled lumber get joined; they create a ¼" wide by 1/8" deep v-groove on the face side of the merged boards. We offer an alternative profile with the same ¼" wide v-groove, but with different inner dimensions for your review and consideration, t & g .437" - 3.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.437
Depth of Cut: 0.186
Left Cutter Head
Thickness: 0.437
Depth of Cut: 0.354
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$130.50
$130.50
Not Needed
Not Needed
Total:
$261.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
$137.50
Not Needed
Not Needed
Total:
$275.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
$144.50
Not Needed
Not Needed
Total:
$289.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
