Tongue & Groove 7/16" - 2
Tongue & Groove 7/16" - 2

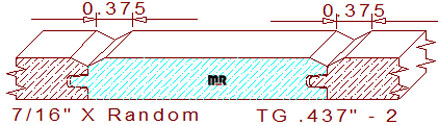

This 7/16" - 2 tongue & groove paneling measures .437" in thickness; widths get machined to any desired size within the parameters of the moulder/shaper used to mill the pattern. One side of the profile comprises a 1/8" tall by 3/16" wide tongue with a 3/16" beveled edge. The opposite side consists of a 1/8" tall by 7/32" wide groove also with a 3/16" chamfered edge when two pieces of milled lumber join together they create a 3/8" wide by 3/32" deep v-groove on one face side of the merged boards.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.437
Depth of Cut: 0.312
Left Cutter Head
Thickness: 0.437
Depth of Cut: 0.500
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
Not Needed
Not Needed
Total:
$268.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
Not Needed
Not Needed
Total:
$282.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
Not Needed
Not Needed
Total:
$303.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
