Tongue & Groove 15/32" - 2

Tongue & Groove 15/32" - 2

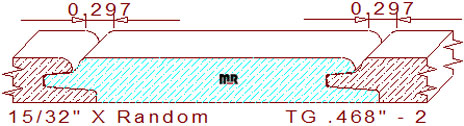

This 15/32" - 2 tongue & groove blind nailing joint measures .468" thickness, enabling machining from resawn six-quarter lumber. The width is milled to any desired size within the parameters of the moulder or shaper used to cut the pattern. There is a .008" void in the joint area for expansion and contraction of the wood during seasonal changes of relative humidity. When two pieces of machined lumber are joined; they create a 19/64" wide rounded edge v-joint between the merged boards. The uniquely designed profile comprises an offset-centered tongue and groove that allows for securing the groove side before the tongue gets inserted.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.468
Depth of Cut: 0.557
Left Cutter Head
Thickness: 0.468
Depth of Cut: 0.608
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
Not Needed
Not Needed
Total:
$268.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
Not Needed
Not Needed
Total:
$282.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
Not Needed
Not Needed
Total:
$303.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
