Tongue & Groove 15/32" - 4

Tongue & Groove 15/32" - 4

Tongue & Groove 15/32" - 4

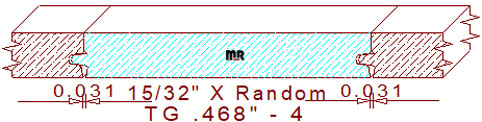

This 15/32" - 4 tongue & groove flooring measures .468" thickness, allowing machining from either resawn six or solid four-quarter lumber. The width is milled to any desired size within the parameters of the moulder/shaper used to cut the pattern. The simplistic profile is composed of a 1/8" wide by 1/8" deep tongue and groove with a tiny nail groove for hiding the head of the nail during installation. It also retains a slight 1/64" wide angle on the bottom side, creating a 1/32" gap when two pieces of lumber get joined.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.468
Depth of Cut: 0.155
Left Cutter Head
Thickness: 0.468
Depth of Cut: 0.127
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$130.50
$130.50
Not Needed
Not Needed
Total:
$261.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
$137.50
Not Needed
Not Needed
Total:
$275.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
$144.50
Not Needed
Not Needed
Total:
$289.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
