Tongue & Groove 1/2" - 10

Tongue & Groove 1/2" - 10

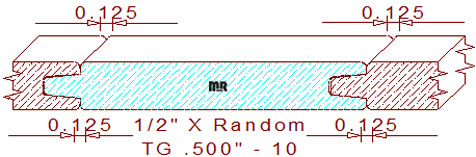

This 1/16" Micro Radius Edge Tongue & Groove Moulding 1/2" - 10 measures .500" thickness with a .390" depth of cut on the right vertical set of cutters, and a .594" depth of cut on the left vertical set of moulding knives, widths are adjusted to any required size during the milling process.

The profile is comprised of a 3/8" wide by 1/4" tall groove with a 1/16" radius on both side edges, there is .005" void area in the joint for expansion and contraction of the wood during seasonal changes in relative humidity. When two pieces of finished milled lumber are joined together they create a simple butt joint with a 1/8" wide micro radius edge on both face sides of the merged boards.

Need this profile template and a set of custom moulding knives quickly? We generally can have these cutters ground with any one of our premium quality high speed steels or carbide and shipped within twenty-four hours. We have artistic profiles from several different architectural eras, there are literally thousands of compelling moulding designs to help match your creative style.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
