Tongue & Groove Moulding 1/2" - 11

Tongue & Groove Moulding 1/2" - 11

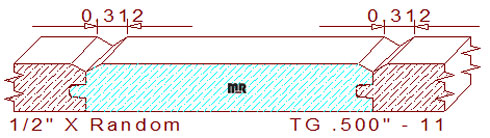

This tongue & groove paneling moulding 1/2" - 11 measures .500" thickness, enabling the detail to be machined out of four quarter lumber. The decorative profile is comprised of a 5/32" wide by 9/64" tall tongue and groove with a 5/32" wide by 3/32" deep chamfer on one edge, there is a .006" void in the joint area for expansion and contraction of the wood during seasonal changes in relative humidity. When two pieces of finished milled lumber are joined together they create a 5/16" wide by 3/32" deep v-joint on one face side of the merged boards.

This professionally drafted cad dxf file contains two high precision moulding template designs to create cutters for this gorgeous tongue and groove paneling. From just an idea in your mind, to reality in your home, our moulding profiles reflect the beauty and style of your imagination, let us help design your custom pattern today.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Thickness = .500" / Depth of Cut = .280" (right blades) & .448" (left cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $10.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
