Tongue & Groove Siding 1/2" - 12

Tongue & Groove Siding 1/2" - 12

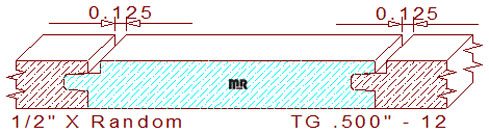

This 1/8" channel tongue & groove siding 1/2" - 12 measures .500" thickness, widths are adjusted to any desired size during the milling process. The profile is comprised of a 1/4" wide by 3/16" tall groove and a 3/8" wide by 3/16" tall tongue, there is .006" void in the joint area for expansion and contraction during seasonal changes in relative humidity. When two pieces of finished milled lumber are joined together they create a 1/8" wide channel on one face side of the merged boards.

Try one of our 125% concentration ultimate CBN (cubic boron nitride) grinding wheels, finish grinding at 3000 rpm with a twenty-degree back clearance angle will create a superior micro edge on all your high-speed steel profile knives. Read this article or watch the videos to help better understand how to align a borazon wheel to axial constant position on a Weinig R960 profile grinder. During the machining process the knives will be capable of milling some of the finest quality architectural mouldings you have ever produced.

For knife quoting purposes use the calculator below, we have added only the important measurements. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Thickness = .500" / Depth of Cut = .250" (groove blades) & .375" (tongue cutters).

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
