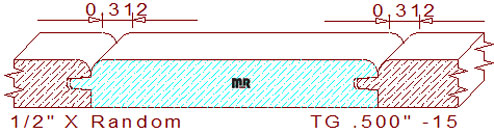

This 5/16" Radius Edge Tongue and Groove Moulding 1/2" – 15 measures .500" thickness with a .331" depth of cut on the right vertical set of cutters, and a .519" depth of cut on the left vertical set of moulding knives, the width is manufactured to desired sizes during the milling process.
The creative profile is comprised of a 1/4" wide by 1/8" tall tongue and groove with a 5/32" radius edge, it also has .006" void in the joint area for expansion and contraction during seasonal changes in relative humidity. When two pieces of finished milled lumber are joined together they create a 5/16" wide by 5/32" deep radius edge joint on the face side of the merged boards.
Ever wonder why certain species of lumber have tear out problems during the milling process? Find out more on how to reduce and eliminate tear issues by changing the cutter head hook angle on the moulding knives.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
