Tongue & Groove 1/2" - 6

Tongue & Groove 1/2" - 6

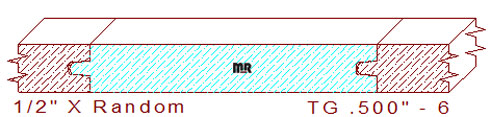

This 1/2" Butt Joint Tongue & Groove Moulding measures .500" thickness, with a .219" depth of cut on the right vertical set of cutters, and a .208" depth of cut on the left vertical set of knives. The width is adjustable to any desired size within the limits of the machinery utilized to mill the pattern.

The simple butt joint design consist of a centered 5/32" tall by 7/32" wide tongue and groove with .005" void in the joint for expansion and contraction of the wood during seasonal changes of relative humidity that occur within the home.

This professionally drafted cad dxf file contains two high precision moulding template designs to create cutters for this tongue and groove detail. Together we help create some of the most unique and compelling architectural moulding designs in the woodworking industry. We have thousands of profile that will reflect the splendor of architectural décor in any room of your marvelous home.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
