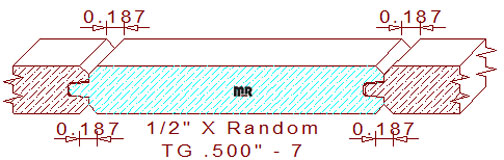

This Double 3/16" Vee Joint Tongue & Groove Paneling 1/2" - 7 measures .500" thickness with a .219" depth of cut on the right set of groove cutters, and a .388" depth of cut on the tongue set of moulding knives, the width is adjusted to any desired size during the milling process.
The profile is comprised of a 7/32" wide by 5/32" tall tongue and groove, with a 3/32" wide by 3/32" tall chamfer on the side edges, the pattern maintains a .008" void in the joint area for expansion and contraction of the wood during seasonal changes in relative humidity. When two pieces of finished milled lumber are joined together they create a 3/16" wide by 3/32" deep vee groove on both face sides of the merged boards.
You will be able to manufacture high speed steel or carbide profile knives literally within minutes after downloading this beautiful moulding pattern. We have thousands of elegant moulding designs that will reflect the splendor of architectural décor in any room of your beautiful home.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
