Tongue & Groove Moulding 1/2" - 8

Tongue & Groove Moulding 1/2" - 8

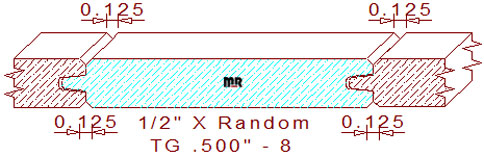

This 1/8" micro bevel tongue & groove moulding 1/2" - 8 measures .500" thickness, widths can be milled to any desired size within the parameters of the moulder or shaper used to machine the pattern. The profile is comprised of a 1/4" wide by 11/64" tall tongue and groove with a 1/16" forty-five degree chamfer on the side edges, there is .008" void in the joint area for expansion and contraction of the wood during seasonal changes in relative humidity. When two pieces of finished lumber are joined together they create a 1/8" wide by 1/16" deep v groove on both face sides of the merged boards.

Are you a moulding manufacturer? If so, please add your company to our millwork suppliers map, this valuable resource will help potential customers experience the craftsmanship of your creative woodworking shop. Did you know you can connect our substantial moulding catalog to your website? It's free, offer your clients profile designs they don’t even know exists.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Thickness = .500" / Depth of Cut = .281" (right blades) & .436" (left cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
