Tongue & Groove 1/2" - 9

Tongue & Groove 1/2" - 9

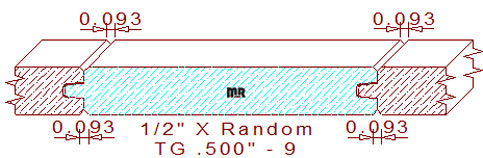

This Double 3/32" Micro Bevel Tongue and Groove Siding 1/2" - 9 measures .500" thickness with a .219" depth of cut on the right side groove cutters, and a .388" depth of cut on the left side tongue knives, widths are adjustable to any desired size during the milling process.

The profile is comprised of a 7/32" wide by 5/32" tall tongue and groove, with a 3/64" forty-five degree chamfer on the side edges of each profile, there is .008" void in the joint area for expansion and contraction of the wood during seasonal changes in relative humidity. When two pieces of finished milled lumber are joined together they create a 3/32" wide by 3/64" deep vee groove/micro bevel on both face sides of the merged boards.

Architects, interior designers, lumber mills, and moulding manufacturers have been utilizing our vast variety of creative moulding knife designs for years, we trust you will find that special moulding profile to enhance the architectural style of your home. If you have any questions or concerns about knife grinding procedures for any of our moulding designs, please contact us, we would be honored to assist you.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
