Tongue & Groove 9/16"
Tongue & Groove 9/16"

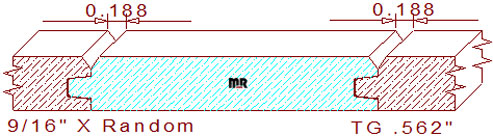

This 9/16" tongue & groove paneling measures .562" in thickness; the width is machined to any desired size within the parameters of the moulder/shaper used to mill the pattern. The profile is composed of a 15/64" tall by 1/4" wide groove on the right and a 15/64" tall by 15/64" wide tongue on the left; both sides have a 3/32" wide by 1/8" deep 36.724-degree beveled edge. When two pieces of milled lumber join, they create a 3/16" wide by 1/8" deep v-groove on the face side of the merged boards. There is a .006" void in the joint area for expansion and contraction of the lumber during seasonal changes in relative humidity.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.563
Depth of Cut: 0.328
Left Cutter Head
Thickness: 0.563
Depth of Cut: 0.572
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
Not Needed
Not Needed
Total:
$268.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
Not Needed
Not Needed
Total:
$282.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
Not Needed
Not Needed
Total:
$303.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
