Tongue & Groove 9/16" - 2
Tongue & Groove 9/16" - 2

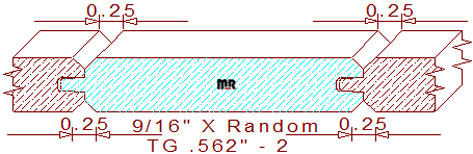

This 9/16" - 2 tongue & groove paneling measures .562" in thickness, the width can be milled to any desired size within the parameters of the moulder/shaper used to cut the pattern. The profile is composed of a 3/16" tall by 9/32" wide groove on the right, and a 3/16" tall by 1/4" wide tongue on the left, both sides have a 1/8" wide by 1/8" deep beveled edge. When two pieces of milled lumber are joined, they create a 1/4" wide by 1/8" deep v-groove on both face sides of the merged boards. There is a .008" void in the joint area for expansion and contraction of the lumber during seasonal changes in relative humidity.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.563
Depth of Cut: 0.281
Left Cutter Head
Thickness: 0.563
Depth of Cut: 0.464
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
Not Needed
Not Needed
Total:
$268.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
Not Needed
Not Needed
Total:
$282.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
Not Needed
Not Needed
Total:
$303.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
