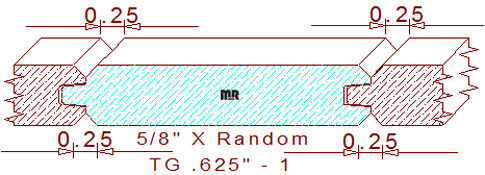

This 1/4" Vee Joint Tongue & Groove Paneling Moulding 5/8" - 1 measures .625" thickness, the width is determined by the left vertical moulder cutter head at the time of milling. The two-sided profile consists of a 7/32" tall by 1/4" deep tongue and groove with a 1/8" by 1/8" chamfer/bevel on each side edge of the pattern, there is also a .010" void in the joint area for expansion and contraction for seasonal changes in relative humidity. When two pieces of milled lumber are joined together they will create a 1/4" wide vee groove on both face sides of the joined boards. The professional cad produced dxf file contains two high precision moulding template designs to create moulder cutters for this tongue and groove detail.
