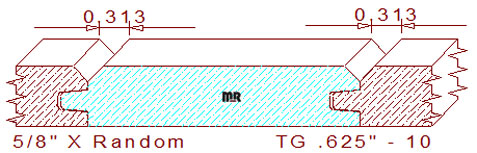

This 5/8" - 10 tongue & groove paneling measures .625" in thickness; the left vertical cutter head determines widths at the milling time. The profile consists of a 7/32" tall by 9/32" deep tongue and groove with a 5/32" by 5/32" bevel on the face side edge of the pattern; there is a .010" void area in the joint for expansion and contraction of seasonal changes in relative humidity. When two pieces of milled lumber join, they will create a 5/16" wide by 5/32" deep vee groove on the face side of the joined boards. This custom design includes the required draft angles to maintain the ability to sharpen the knives and prolong the milling time between sharpening.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.625
Depth of Cut: 0.312
Left Cutter Head
Thickness: 0.625
Depth of Cut: 0.563
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
Not Needed
Not Needed
Total:
$268.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
Not Needed
Not Needed
Total:
$282.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
Not Needed
Not Needed
Total:
$303.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
