Tongue & Groove Moulding 5/8" - 17

Tongue & Groove Moulding 5/8" - 17

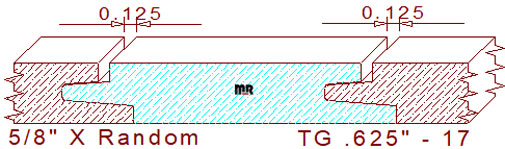

This 1/8" channel tongue & groove paneling 5/8" - 17 measures .625" thickness, the width is limited only by the parameters of the machinery used to mill the pattern. The profile consists of a 1/4" tall by 3/4" deep overlap tongue and groove flanked by 3/16" vertical lines, this offset pattern is perfect for projects that require blind nailing during the installation process. When two milled pieces of lumber are merged together, they create a 1/8" wide by 3/16" deep channel/quirk on one face side of the joined boards. There is a .008" void in the joint area for expansion and contraction to accommodate seasonal changes in relative humidity. This knife design includes four degree draft angles to maintain the ability to sharpen the cutters without altering the profile, while prolonging the milling time between sharpening. We have a 5/8" thickness version of this profile for your review and consideration, tongue & groove .375".

You will be able to manufacture high speed steel or carbide profile knives literally within minutes after downloading this beautiful moulding pattern. Together we help create some of the most unique and compelling architectural moulding profile designs in the woodworking industry, this pattern will reflect the splendor of architectural decor in any room of your beautiful home.

For knife quoting purposes use the calculator below, we have added only the important measurements. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Thickness = .625" / Depth of Cut = .750" (right blades) & .750" (left cutters).
