Tongue & Groove 5/8" - 2

Tongue & Groove 5/8" - 2

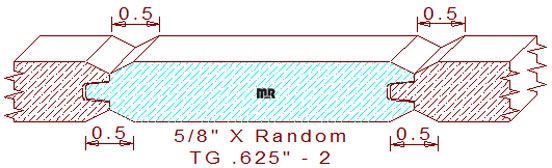

This tongue and groove moulding measures 5/8" thickness, widths are adjusted to desired size, the design consist of a 3/16" wide tongue with .010" slop left in the joint area, when two pieces of finished milled lumber are joined together they will create a 1/2" wide V groove on two face sides of the boards.

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
