Tongue & Groove 5/8" - 4
Tongue & Groove 5/8" - 4

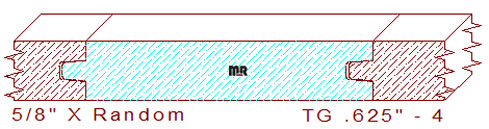

This 5/8" - 4 butt joint tongue & groove measures .625" in thickness; widths are determined by the left vertical cutter heads at the milling time. The basic profile consists of a 7/32" tall by 9/32" deep tongue and groove with a .006" void in the joint area for expansion and contraction of seasonal changes in relative humidity. When two pieces of milled lumber are joined, they create a simple butt joint in the center of merged boards. The tongue and groove template design has the necessary five-degree draft angles to maintain the ability to sharpen the knives and prolong the milling time between sharpening.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.625
Depth of Cut: 0.281
Left Cutter Head
Thickness: 0.625
Depth of Cut: 0.250
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
Not Needed
Not Needed
Total:
$268.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
Not Needed
Not Needed
Total:
$282.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
Not Needed
Not Needed
Total:
$303.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
