Tongue & Groove 5/8" - 5

Tongue & Groove 5/8" - 5

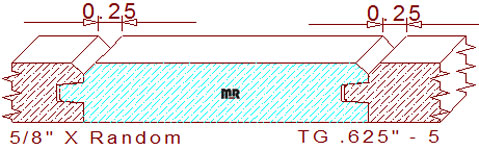

This 1/4" Vee Joint Tongue & Groove Paneling Moulding 5/8" - 5 measures .625" thickness, widths are determined by the left vertical moulder cutter head at the time of milling. The single sided profile consists of a 13/64" tall by 1/4" deep tongue and groove with a 1/8" wide by 1/8" tall chamfer on the edge of the pattern, there is also a .006" void in the joint area for expansion and contraction of the wood to accommodate seasonal changes in relative humidity. When two pieces of milled lumber are merged together they will create a 1/4" wide by 1/8" deep vee groove on the face side of the joined boards. Utilize one of our beautiful wainscot cap mouldings (located in Caps Category) that will compliment this profile and create an innovative one of a kind custom moulding design.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
