Tongue & Groove 5/8" - 8

Tongue & Groove 5/8" - 8

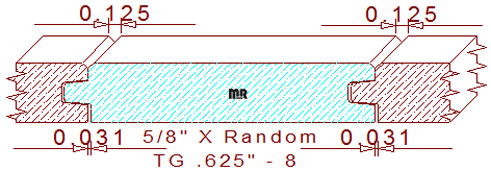

This 1/8" Vee Joint Tongue & Groove Moulding 5/8" - 8 measures .625" thickness, widths are determined by the left vertical moulder cutter head at the time of milling. The profile consists of a 1/4" tall by 9/32" deep tongue and groove with a 1/16" deep" by 1/16" wide bevel on the edge of the pattern, there is a .010" void area in the joint for expansion and contraction during seasonal changes in relative humidity. When two pieces of milled lumber are joined together they will create a 1/8" wide by 1/16" deep vee groove on the face side of the joined boards with a 1/32" wide gap on the bottom to assure a tightly closed joint on the face side of the pattern when assembled during installation.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
