Tongue & Groove 11/16"
Tongue & Groove 11/16"

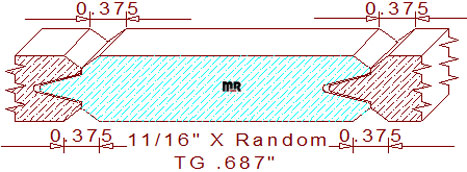

This 11/16" tongue & groove picket fencing measures .687" thickness, allowing the pattern to be machined from four-quarter lumber, and widths are milled to any desired size within the parameters of the moulder/shaper used to cut the detail. There is a .031" void in the joint area for expansion and contraction of the wood during seasonal changes in relative humidity. When two pieces of lumber are joined, they create a standard 3/8" wide by 5/32" deep v-groove pattern for building picket fences. The pointed tongue measures 7/16" wide by 9/32" tall; the groove dimension is 1/2" wide by 3/8" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.688
Depth of Cut: 0.500
Left Cutter Head
Thickness: 0.688
Depth of Cut: 0.718
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$141.00
Not Needed
Not Needed
Total:
$275.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$148.00
Not Needed
Not Needed
Total:
$289.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$158.50
Not Needed
Not Needed
Total:
$310.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
