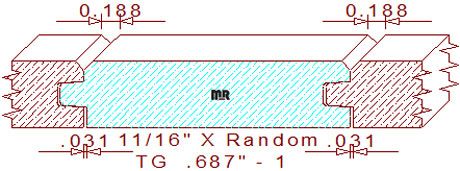

This V Groove - Tongue & Groove Moulding 11/16" - 1 measures .687" thickness, widths can be produced to any desired size within the parameters of the moulder or shaper being used to mill the pattern. The profile is composed of a 1/4" wide by 1/4" deep tongue and groove with .010" of slop in the joint area, it also retains a 3/32" by 3/32" forty-five degree chamfer on the face side with a 1/32" wide gap on the bottom side to assure a tight fit at the joint area during assembly. When two pieces of lumber are joined together after the milling process they will create a 3/16" wide by 3/32" deep V groove on one face side of the joined boards.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
