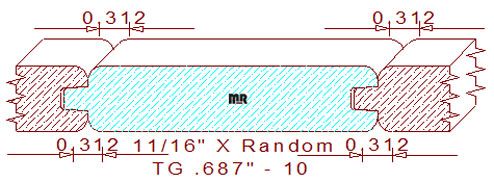

This Tongue & Groove Moulding 11/16" - 10 measures .687" thickness, the width can be milled to any desired size within the parameters of the moulding machinery used to manufacture the detail. The profile is comprised of a 1/4" wide by 1/4" deep tongue and groove with a 5/32" radius on each edge, a total of .008" slop in the joint area will assure a good fit. When two pieces of finished milled lumber are joined together they will create 5/16" wide radiused V joint on both face sides of the lumber.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
