Tongue & Groove 11/16" - 11

Tongue & Groove 11/16" - 11

Tongue & Groove 11/16" - 11

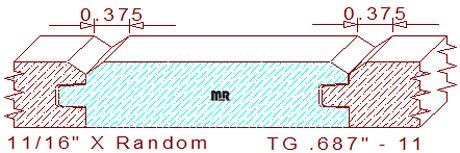

This 11/16" - 11 v-groove siding measures .687" in thickness, and the width can be manufactured to any desired size within the parameters of the moulder/shaper being used to mill the pattern. The profile is composed of a 1/4" wide by 1/4" deep tongue & groove with a .010" void in the common area and a 1/8" deep by 3/16" wide chamfer is positioned on one edge of the design. When two pieces of finished milled lumber are joined together they create a 3/8" wide by 1/8" deep v-shaped groove on one face side of the joined boards.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.687
Depth of Cut: 0.312
Left Cutter Head
Thickness: 0.687
Depth of Cut: 0.538
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$130.50
$130.50
Not Needed
Not Needed
Total:
$261.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
$137.50
Not Needed
Not Needed
Total:
$275.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
$144.50
Not Needed
Not Needed
Total:
$289.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
