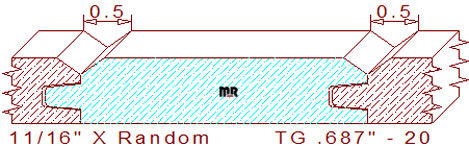

This 11/16" - 20 v-groove siding measures various widths by .687" thickness, requiring the use of a 1/4" wide oversized blank of the finished width of four-quarter lumber for milling on an industrial moulder. The classic v-groove profile contains a 9/32" tall by 13/32" wide groove with a 1/4" wide by 11/64"deep beveled edge on the right. The opposite side retains a 17/64" tall by 3/8" broad tongue with the identical size bevel. When two pieces of machined lumber are joined, they create a 1/2" wide by 17/64" deep v-groove with a .014" void in the joint area for expansion and contraction of the wood during seasonal changes in relative humidity.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.687
Depth of Cut: 0.407
Left Cutter Head
Thickness: 0.687
Depth of Cut: 0.375
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
Not Needed
Not Needed
Total:
$268.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
Not Needed
Not Needed
Total:
$282.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
Not Needed
Not Needed
Total:
$303.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
