Tongue & Groove 11/16" - 3
Tongue & Groove 11/16" - 3

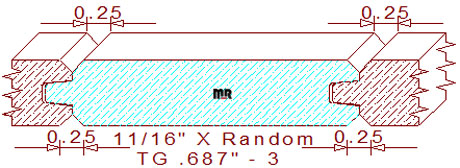

This decorative 687" - 3 double v-groove siding measures .687" thickness, allowing any size width of four-quarter lumber for milling on a commercial moulder. The wide-milled panels are for covering walls & ceilings to form a beautiful interior look. It consists of a 1/4" tall by 5/16" deep groove with two 1/4" bevels on the right edges. The opposite side retains the identical chamfer with a 1/4" high by 9/32" wide tongue. There is a built-in void of .008"; this space is for the expansion and contraction of the wood during seasonal changes in relative humidity. When two milled pieces of lumber join, they create a 1/4" wide by 1/8" deep v-groove on both face sides where the boards meet.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.687
Depth of Cut: 0.312
Left Cutter Head
Thickness: 0.687
Depth of Cut: 0.500
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
Not Needed
Not Needed
Total:
$268.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
Not Needed
Not Needed
Total:
$282.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
Not Needed
Not Needed
Total:
$303.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
