Search Our Moulding Knives Catalog by Category and Size

*Enter desired search sizes - use whole numbers & decimals

Tongue & Groove 11/16" - 4

Tongue & Groove 11/16" - 4

Tongue & Groove 11/16" - 4

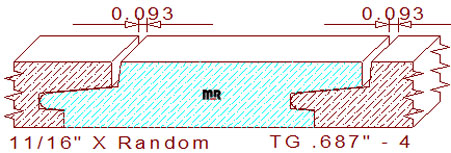

This 11/16" - 4 nickel board siding measures .687" in thickness and widths are adjusted to any desired size within the parameters of the molder or shaper used to mill the pattern. The profile comprises a 15/16" wide offset tongue and a 3/4" wide offset groove specifically designed for blind nailing during installation. This unique design provides a solid surface to nail. Without this offset it raises the probability of splitting the lumber on the tongue portion due to the void area behind the tongue when nailed. In the channel portion of the pattern, there is a five-degree bevel to allow moisture to flow onto the face of the siding the points away from the joining area. When two pieces of lumber are joined, they create a decorative 3/32" wide channel that's about the same thickness as a nickel.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.687
Depth of Cut: 0.760
Left Cutter Head
Thickness: 0.687
Depth of Cut: 0.875
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
$137.50
Not Needed
Not Needed
Total:
$275.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
$144.50
Not Needed
Not Needed
Total:
$289.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
Not Needed
Not Needed
Total:
$303.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
