WP-4 Tongue & Groove Moulding 23/32" - 1

WP-4 Tongue & Groove Moulding 23/32" - 1

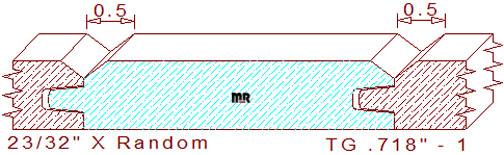

This WP-4 paneling/siding moulding 23/32" - 1 measures 23/32" thickness, the widths are adjusted to any desired size within the parameters of the molder or shaper used to mill the pattern. The detail consists of a 1/4" wide by 3/8" tongue and a 9/32" wide by 7/16" groove with a 3/16" deep by 1/4" wide chamfer on the top portion of the pattern. When two pieces of lumber are joined together they create a 1/2" wide V groove in the center with 1/32" void in the joint area for seasonal changes in relative humidity. This downloadable dxf file contains four template designs, two for milling face up and the other two for milling face side down.

You will be able to manufacture high speed steel or carbide profile knives literally within minutes after downloading this beautiful t & g pattern. Check out our updated tooling and supplies catalog for other high quality products we supply for your moulder and knife grinding room, all with reasonable pricing.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Thickness = .718" / Depth of Cut = .437" (right blades) & .750" (left cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
