WP 4 Tongue & Groove 23/32" - 3
WP 4 Tongue & Groove 23/32" - 3

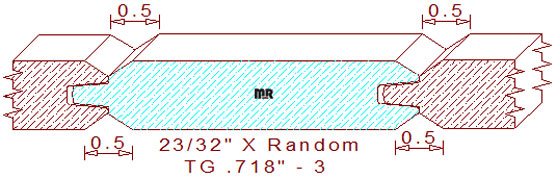

This WP 4 tongue & groove siding 23/32" - 3 measures .718" in thickness, and widths are adjustable to any desired size within the parameters of the machinery used to mill the pattern. The popular design resembles WP 4 wood siding, except this detail has two face sides that will offer more flexibility during installation. When two pieces of milled lumber are joined, they create a 1/2" wide by 5/32" deep v-groove on both faces of the joined boards.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.718
Depth of Cut: 0.437
Left Cutter Head
Thickness: 0.718
Depth of Cut: 0.750
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$141.00
Not Needed
Not Needed
Total:
$275.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$148.00
Not Needed
Not Needed
Total:
$289.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$158.50
Not Needed
Not Needed
Total:
$310.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
