Tongue & Groove Moulding 23/32" - 5

Tongue & Groove Moulding 23/32" - 5

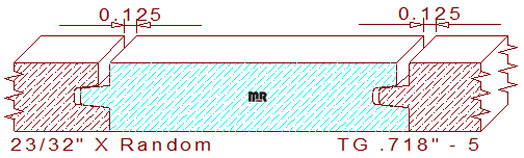

This 1/8" wide channel (nickel board) tongue & groove Moulding 23/32" - 5 measures .718" thickness, with a .375" depth of cut on the right cutters, and a .312" depth of cut on the left vertical moulder blades, the width is adjustable to any desired size within the parameters of the moulder being utilized to mill the pattern.

The profile is comprised of a 1/4" tall by 5/16" wide tongue, and a 1/4" tall by 3/8" deep groove with a 1/8" offset. The lower side of the tongue bottoms out on the groove, leaving a 1/8" wide channel on one face side of the lumber when two boards are joined together after the milling process.

Utilize our Moulding Manufacturers Map listed by states to help you locate a local mill in your area to manufacture this creative profile for you.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
