Tongue & Groove Moulding 3/4" - 10

Tongue & Groove Moulding 3/4" - 10

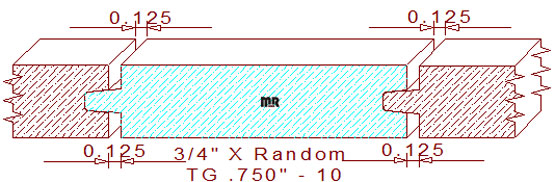

This 1/8" double channel tongue & groove moulding 3/4" - 10 measures .750" thickness, widths are adjustable to any desired size within the parameters of the moulder being used to mill the pattern. The profile is comprised of a 1/4" tall by 3/8" wide tongue and a 1/4" tall by 1/4" deep groove, with a .008" void in the joint area for expansion and contraction of the wood during seasonal changes in relative humidity. The tongue portion bottoms out in the groove section by 1/8" creating a 1/8" gap on both faces of the lumber when two boards are joined together.

Our profile designs include the required draft angles to maintain the ability to sharpen the knives properly without modifying the detail while prolonging the milling time between sharpening. Whether you own a Weinig, Wadkin, Leadermac, SCM, Diehl, or Kentwood moulder, our patterns will mill flawlessly on them all.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Thickness = .750" / Depth of Cut = .250" (right blades) & .375" (left cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
