Tongue & Groove Moulding 3/4" - 15

Tongue & Groove Moulding 3/4" - 15

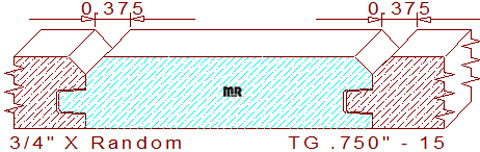

This 3/8" V joint tongue and groove moulding 3/4" - 15 measures .750" thickness, the width is adjusted to any desired size during the milling process. The profile is comprised of a 5/16" wide by 1/4" tall tongue and groove, with a 3/16" wide by 3/16" deep forty-five degree chamfer on the side edge of each profile, there is .008" void in the joint area for expansion and contraction of the wood during seasonal changes in relative humidity. When two pieces of milled lumber are joined together they create a 3/8" wide by 3/16" deep vee groove on one face side of the merged boards.

Ever wonder why certain species of lumber have tear out problems during the milling process? Find out more on how to reduce and eliminate tear issues by changing the cutter head hook angle on the moulding knives.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Thickness = .750" / Depth of Cut = .322" (right blades) & .602" (left cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
