Tongue & Groove Paneling 3/4" - 2

Tongue & Groove Paneling 3/4" - 2

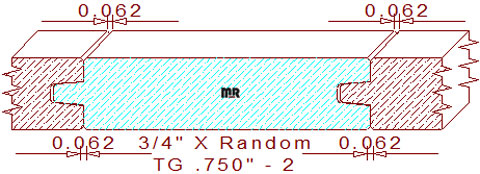

This double 1/16" V joint tongue & groove 3/4" - 2 measures .750" thickness, widths can be manufactured to any desired size within the limits of the moulder used to mill the pattern. The profile is comprised of a 5/16" wide by 1/4" tall tongue and groove with .006" void in the joint area, connected to a 1/32" wide by 1/32" deep chamfer on both edges. When two pieces of lumber are joined together they will create a 1/16" wide by 1/32" deep V groove on the both faces of the joined boards.

This professionally drafted cad dxf file contains two high precision template designs to create cutters for this lovely paneling detail. From just an idea in one's mind, to reality in their home, our profiles reflect the beauty and style of your imagination, let us help you design a custom pattern today.

For knife quoting purposes use the calculator below, we have added only the important dimensions. A brief detailed explanation on how to use the calculator is located here.

Thickness = .750" / Depth of Cut = .343" (right blades) & .469" (left cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
