Tongue & Groove 3/4" - 21
Tongue & Groove 3/4" - 21

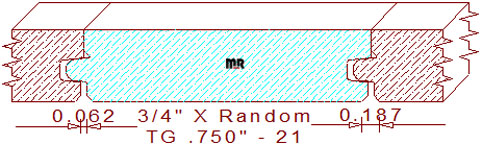

This 3/4" - 21 tongue & groove flooring measures .750" in thickness, allowing the pattern to be machined out of four-quarter lumber; the width is adjustable to any desired size within the parameters of the moulder or shaper used to mill the pattern. The functional profile is comprised of a 1/4" tall by 3/16" wide tongue on the left, attached to a small nail groove with a 1/32" offset and a small chamfer at the bottom. The groove side consists of a 1/4" wide by 1/4" tall dado, connected to a 1/32" offset and a small bevel on the bottom of the pattern. There is a .005" void in the joint area for expansion and contraction of the wood during seasonal changes in relative humidity.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.250
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.438
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
Not Needed
Not Needed
Total:
$268.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
Not Needed
Not Needed
Total:
$282.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
Not Needed
Not Needed
Total:
$303.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
